[ Dead~Bolt Reels ]
(Total Pages: 1 )   Page : 1
Item
No
Spool/ReelFlange
Diameter
D
inch
Barrel
Diameter
d
inch
Bore
Diameter
d3
inch
Traverse
Length
l
inch
MaterialRemark

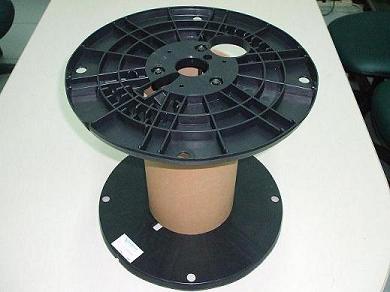

1 14" x 6.33" x 11"146.331.7511

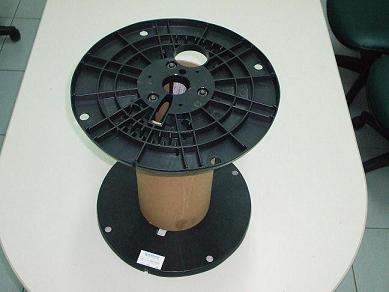

2 14" x 6.33" x 13.5"146.331.7513.5
3 14" x 5.06" x 8.5"145.061.758.5 PP
414" x5.06" x AA"145.061.750 AA can be designated by customer.
514" x 6.33" x AA"146.331.750 AA can be designated by customer.
612" x 5.06" x 9.5"125.061.759.5 PP
712" X 5.06" X 13.5"125.061.7513.5 PP
812" x 5.06" x AA"125.061.750 AA can be designated by customer.
