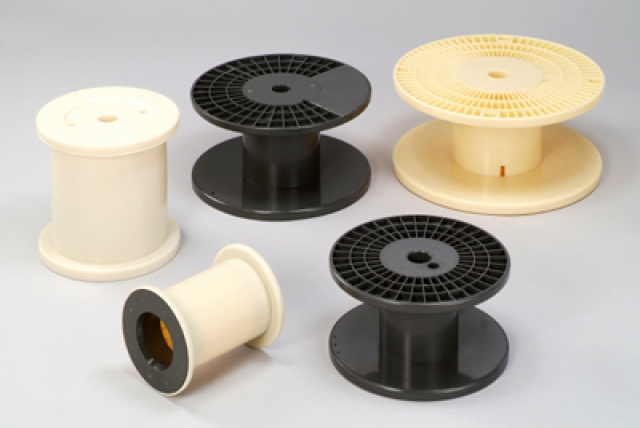

[ B type & P type II ]
(Total Pages: 1 ) Page :
1
Item
No
Spool/Reel
Flange
Diameter
D
mm
Barrel
Diameter
d
mm
Overall
Length
L
mm
Traverse
Length
l
mm
Bore
Diameter
h1/h2
mm
Flange
Thickness
t1/t2
mm
Spool
Weight
W
g
Material
Remark
1
B-25
250
110
140
110
30
15
900
ABS
other name: P-15
2
P-30
300
130
160
130
30
15
1300
HIPS
3
P-40
350
150
166
130
32
18
1900
ABS
4
P-145 (A)
145
110
170
150
70
10
540
ABS
5
P-145 (B)
145
110
176
150
80
10
560
HIPS
6
P-216 (A)
216
176
216
180
80
18
1620
ABS
7
P-216 (B)
216
176
216
180
30
18
1460
ABS
8
P-400
400
150
290
240
53
25
3200
ABS
9
P-400/250
400
250
146
100
50
23
3000
ABS
