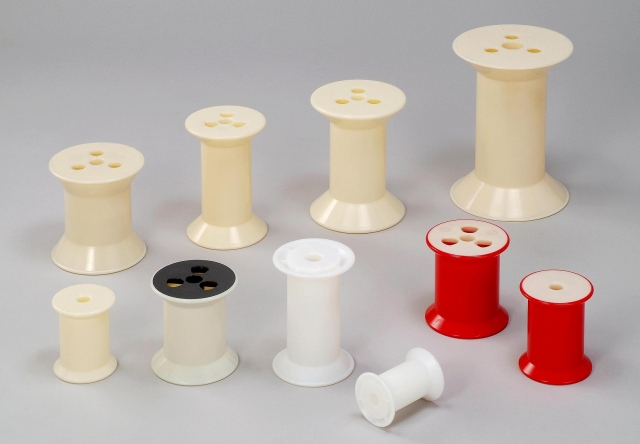

[ JIS type ]
(Total Pages: 1 ) Page :
1
Item
No
Spool/Reel
Flange
Diameter
D
mm
Barrel
Diameter
d
mm
Bore
Diameter
d3
mm
Traverse
Length
L1
mm
Overall
Length
L2
mm
Flange
Thickness
t1/t2
mm
Spool
Weight
W
g
Material
Remark
1
PL-300S
63.4
44.4
16
60
86.3
13.15
70
ABS / HIPS
same as IEC type 76/45
2
PL-400S
76
60
16
68
92
12
98
ABS
3
PL-600S
88
68
16
79
106
13.5
130
ABS
4
OR-1K
106
82
20
80
112
16
165
ABS
5
OR-1.5K (A)
106
76
20
75
112
18.5
165
ABS
6
OR-1.5K (B)
106
76
20
75
112
18.5
195
ABS
7
OR-1.5R
107.5
76
20
75
112
18.5
200
ABS
8
OR-1.5S
106
76
20
75
112
18.5
200
ABS
9
OR-2K (A)
112
70
20
116
166
25
232
ABS
10
OR-2K (B)
112
70
20
116
166
25
225
HIPS
11
OP-2
100
65
20
111
145
17
160
HIPS
12
PL-4S (A)
135
80
20
110
175
32.5
314
HIPS
13
PL-4S (B)
135
80
20
110
175
32.5
320
ABS
14
PL-10S
170
100
26
160
230
35
507
ABS / HIPS
