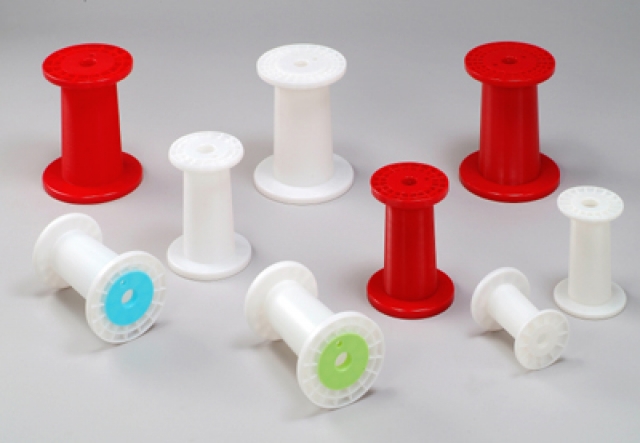

[ PT type I ]
(Total Pages: 1 ) Page :
1
Item
No
Spool/Reel
Top Flange
Diameter
D1
mm
Bottom
Flange
Diameter
D2
mm
Barrel
Top
Diameter
d1
mm
Barrel
Bottom
Diameter
d2
mm
Traverse
Length
L1
mm
Overall
Length
L2
mm
Bore
Diameter
h1/h2
mm
Flange
Thickness
t1/t2
mm
Spool
Weight
W
g
Material
Remark
1
PT-1
95
103
53
58
100
120
21
10
100
HIPS
2
PT-2 (A)
102
112
60
67
150
170
20
10
150
HIPS
3
PT-2 (B)
102
112
60
67
150
170
26
10
150
HIPS
4
PT-4 (A)
124
140
74
86
170
200
26
15
340
HIPS
5
PT-4 (B)
124
140
74
86
170
200
26
15
250
HIPS
6
PT-4 (C)
124
140
74
86
170
200
26
15
250
HIPS
7
PT-4 (D)
124
140
74
86
170
200
30
15
250
HIPS
8
PT-4 (E)
124
140
74
86
170
200
26
15
200
HIPS
9
PT-4R
124
140
74
86
170
200
26
15
260
HIPS
10
TR4K (A)
124
140
74
86
170
200
26
15
250
HIPS
11
TR4K (B)
124
140
74
86
170
200
26
15
300
HIPS
12
PT-10
160
180
96
110
200
230
29
15
500
HIPS
13
PT-10 (A)
160
180
96
110
200
230
26
15
620
HIPS
14
PT-10 (B)
160
180
96
110
200
230
29
15
420
HIPS
15
PT-10 (C)
160
180
96
110
200
230
30
15
370
HIPS
16
PT-10 NEW
160
180
96
110
200
230
26
15
620
ABS / HIPS
