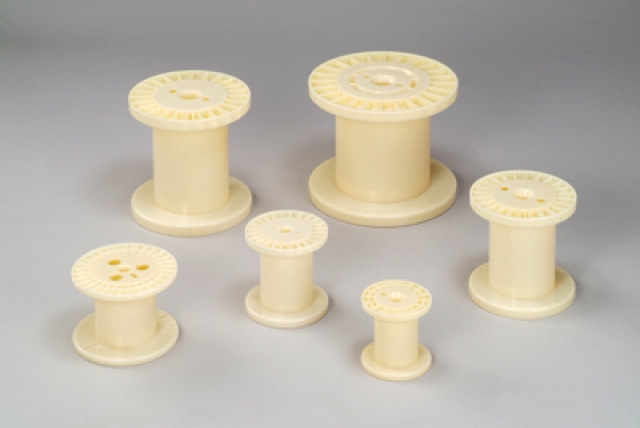

[ DIN type ]
(Total Pages: 1 ) Page :
1
Item
No
Spool/Reel
Flange
Diameter
D
mm
Barrel
Diameter
d
mm
Overall
Length
L
mm
Traverse
Length
l
mm
Bore
Diameter
h1/h2
mm
Flange
Thickness
t1/t2
mm
Spool
Weight
W
g
Material
Remark
2
DIN100
100
63
100
80
16
10
125
ABS
3
DIN125
125
80
125
100
16
12.5
200
ABS
4
DIN160
160
100
160
128
22
16
350
ABS
5
DIN200
200
125
200
160
22
20
610
ABS
6
DIN250
250
160
200
160
22
20
1250
ABS
